35FT 3mm Thick Q345 500KG Load Polygonal Transmission Steel Tubular Pole
Product Description:
The HDG electrical steel tubular pole was designed for Philippines Market which complies with NEA Standard for distribution and transmission Line use. The NEA Standard steel tubular pole is direct buried and connected with slip joint for poles over 12m length. Re appearance anti-corrosive treatment, the pole is hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.
Product Specification:
| Products | - 35FT 3mm Thick Q345 500KG Load Polygonal Transmission Steel Tubular Pole
|
| Application | - Transmission line project
|
| Voltage Grade | |
| Galvanization | - Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
|
| Shape | - Polygonal / Conical / Tubular
|
| Welding | - According to AWS D 1.1, CO2 welding or submerged arc auto methods
- No fissure, scar, overlap, layer or other defects
- Internal and external welding makes the pole more beautiful in shape
- If customers need any other requirements of welding, we also can make adjustment ad your request
|
| Joint | |
| Surface treatment | - Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required |
| Painting | |
Product Advantages:
The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.
NEA Standard Specification:
Octagonal Galvanized Steel Pole 25FT, 30FT, 35FT, 40FT,45FT
| Height (ft) | Thickness (mm) | Butt Diameter (mm) | Tip Diameter (mm) | Design Load (kg) | Yield Stress (MPA) | Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 3.0 | 328 | 127 | 500 | 345 | 86 |

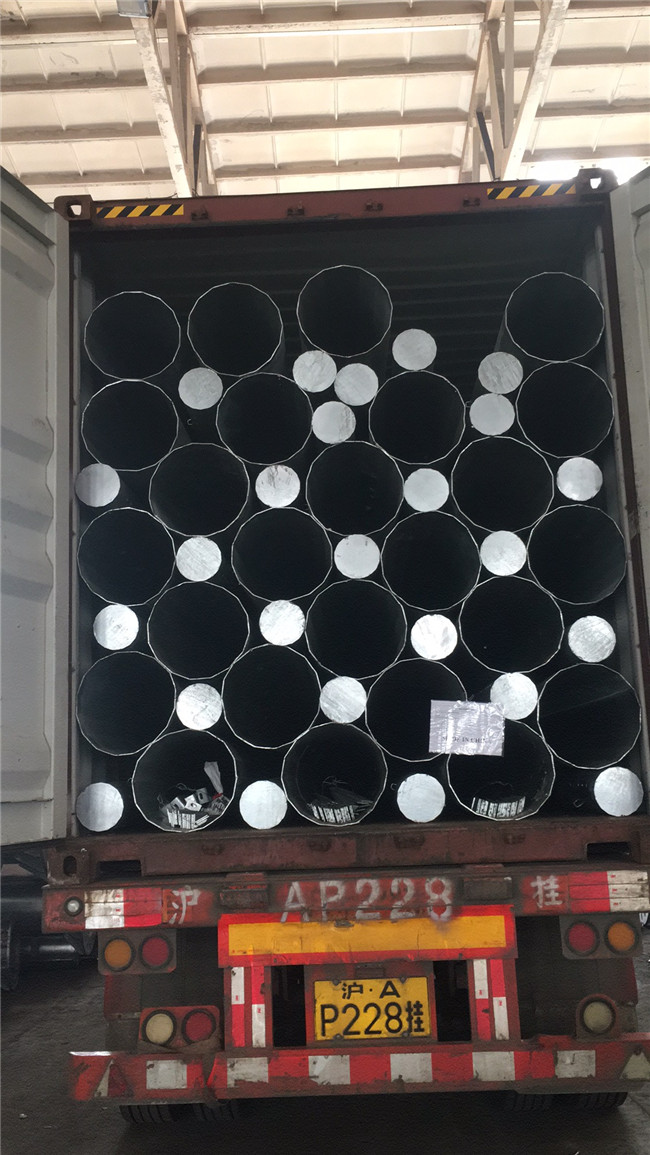

Packaging&Shipping:

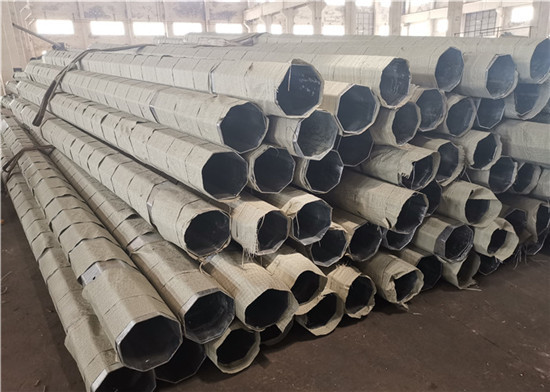

Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.
FAQ
1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Wanshi Industrial Zone,Yixing District, Wuxi City, Jiangsu Province, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
Contact Us:
Jiangsu Hongguang Steel Pole Co., Ltd.
Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
Telphone: +86 510 878 441 56
Fax: +86 510 878 435 28
Trade manager ID: cnhgsteelpole
Skype: tangjia870124
Please feel free to contact us!
